| 输入INPUT |
| 可选输入插头Optional input plug |
|
|
|
|
|
|
|
| 电压Voltage/频率Hz |
100V—240VAC 50-60Hz |
| 调整范围Adjusting range |
90V—264VAC，47Hz—63Hz |
| 电流Current |
1.0A Max |
| 保护Protection |
内置一次性保险丝不可拆卸Internal Primary Current Fuse, Inrush Limiting |
| 输出 OUTPUT |
| 空载电压范围No-load voltage range |
12.55-12.75VDC |
| 负载电压范围Load voltage range |
9-12.23VDC |
| 充电电流Charging current |
1800-2200Ma |
| 转灯电流 Turn lamp current |
200-300Ma |
| 纹波Ripple |
＜250mV |
| 瞬态响应Transient Response |
在50%负载时0.5毫秒 0.5mS for 50% Load Change Typical |
| 过流保护点OCP |
105%～150% |
| 保护Protection |
短路保护/过载保护/过温保护，可自动恢复.
Short Circuit protection/Over voltege protection/Over Temperature protection,
Can automatically recover. |
| 常用DC插头Commonly DC plugs |
3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5，可按要求定做，客户没注明长度一律为10mm。
Can be customized according to the requirement，10 mm in length if not specified。 |
| 电性 Electrical |
| 绝缘强度Dielectric Withstand |
4242 VDC Primary – Secondary |
| 漏电流Leakage Current |
0.25mA @ 2 Pin / 0.5mA @ 3 Pin |
| 指示灯Indicator light |
绿色：电池充满或与电池断开状态，红色：起充或充电过程；
Green：charger is full or disconnect；Red：Pre-charger or charging |
| 转换效率 Efficiency |
符合5级能效及ERP阶段2认证 Engergy Star Level V & ErP Stage 2 Certified |
| EMI传导和辐射EMI Conduction & Radiation |
EN:55022：2010，EN55014-1，EN61000-3-3：2013 |
| 浪涌电流 surge current |
当输出为额定负载,环境温度为25℃,输入240VAC冷态起动电源时的最大浪涌电流小于30A，
30A MPS@240VAC at 25 ℃ Cold start |
| 抗静电EMS Immunity |
IEC61000-4-2 |
| 绝缘等级Insulation class |
输入对地最小50兆欧 50M ohms minimum from input to ground |
| 平均无故障时间 MTBF |
在25℃环境温度下，额定负载工作平均无故障时间30,000小时；
In 25 environment Temp,The Rated load MTBF 30000H |
| 使用环境Environmental |
| 工作温度Operaturing Temperature |
0 to +40°C |
| 储存温度Storage Temperature |
-20 to +80°C |
| 相对湿度Relative Humidity |
工作：20%～80%RH Operating 20 to 80% RH |
| 储存:10 - 90% RH Storage: 10 to 90% RH |
| 冷却方式Cooling |
自然冷却Natural Convection Cooling |
| 安规认证Safety Approvals |
| CCC TUV-CE-EMC TUV-CE-LVD TUV-GS TUV-FCC SAA(RMC) TUV-PSE TUV-CB CUL UL ROHS |
| 其他other |
| 产品尺寸Case Dimension |
82*50*32mm |
| 包装细节Packing detail |
大约about160G/PCS 外箱尺寸Carton size：460*390*260mm |

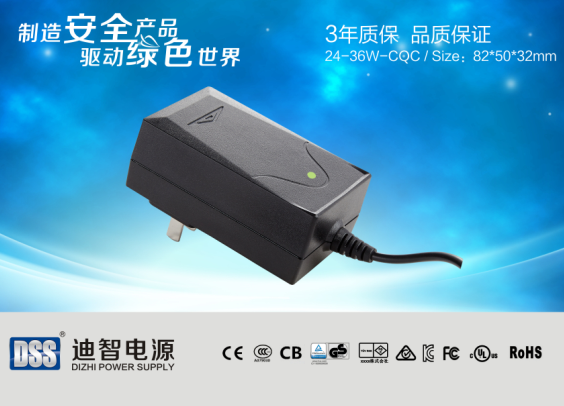

| 实拍图片actual picture： |
|
