输入INPUT
|
|
电压Voltage/频率Hz
|
100V—240VAC 50-60Hz
|
|
调整范围Adjusting range
|
90V—264VAC，47Hz—63Hz
|
|
电流Current
|
1.0A Max
|
|
保护Protection
|
内置一次性保险丝不可拆卸Internal Primary Current Fuse, Inrush Limiting
|
|
输出 OUTPUT
|
|
纹波Ripple
|
＜300mV
|
|
瞬态响应Transient Response
|
在50%负载时0.5毫秒 0.5mS for 50% Load Change Typical
|
|
过流保护点OCP
|
105%～150%
|
|
保护Protection
|
短路保护/过载保护/过温保护，可自动恢复.
Short Circuit protection/Over voltege protection/Over Temperature protection,
Can automatically recover.
|
|
常用DC插头Commonly DC plugs
|
USB 3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5，可按要求定做，客户没注明长度一律为10mm。
Can be customized according to the requirement，10 mm in length if not specified。
|
|
电性 Electrical
|
|
绝缘强度Dielectric Withstand
|
4242 VDC Primary – Secondary
|
|
漏电流Leakage Current
|
0.25mA @ 2 Pin / 0.5mA @ 3 Pin
|
|
指示灯Indicator light
|
绿色：电池充满或与电池断开状态，红色：起充或充电过程；
Green：charger is full or disconnect；Red：Pre-charger or charging
|
|
转换效率 Efficiency
|
符合5级能效及ERP阶段2认证 Engergy Star Level V & ErP Stage 2 Certified
|
|
EMI传导和辐射EMI Conduction & Radiation
|
EN:55022：2010，EN55014-1，EN61000-3-3：2013
|
|
浪涌电流 surge current
|
当输出为额定负载,环境温度为25℃,输入240VAC冷态起动电源时的最大浪涌电流小于30A，30A MPS@240VAC at 25 ℃ Cold start
|
|
抗静电EMS Immunity
|
IEC61000-4-2
|
|
绝缘等级Insulation class
|
输入对地最小50兆欧 50M ohms minimum from input to ground
|
|
平均无故障时间 MTBF
|
在25℃环境温度下，额定负载工作平均无故障时间30,000小时；In 25 environment Temp,The Rated load MTBF 30000H
|
|
使用环境Environmental
|
|
工作温度Operaturing Temperature
|
0 to +40°C
|
|
储存温度Storage Temperature
|
-20 to +80°C
|
|
相对湿度Relative Humidity
|
工作：20%～80%RH Operating 20 to 80% RH
|
|
储存:10 - 90% RH Storage: 10 to 90% RH
|
|
冷却方式Cooling
|
自然冷却Natural Convection Cooling
|
|
安规认证Safety Approvals
|
|
CCC TUV-CE-EMC TUV-CE-LVD TUV-GS TUV-FCC SAA(RMC) TUV-PSE TUV-CB CUL UL ROHS
|
|
其他other
|
|
产品尺寸Case Dimension
|
95*46*42mm
|
|
包装细节Packing detail
|
大约about220G/PCS 外箱尺寸Carton size：460*390*260mm
|
|

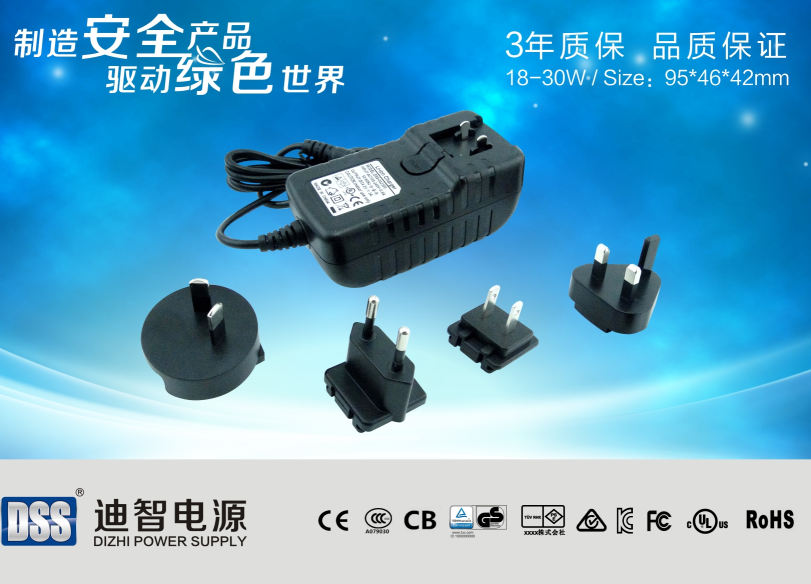

实拍图片actual picture：
|
|
|
